Technical Overview

This document provides a technical overview of Courier’s internal operation.

Message Pipeline

Let’s first cover how a message flows through the system.

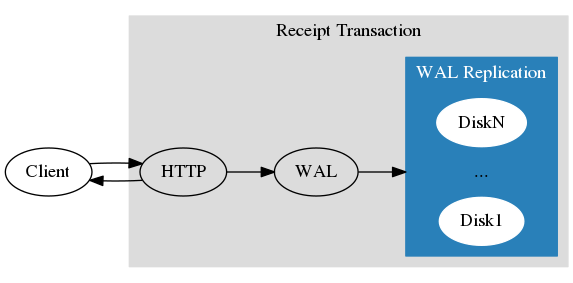

Message Receipt

A message is received by Courier and written to the WAL. This step must complete successfully before a response is sent to the client.

The WAL stores the actual message to disk redundantly. Each message type (or “event name”) is saved to its own log file. Periodically the log file is closed for writing, meaning it’s time to process the messages.

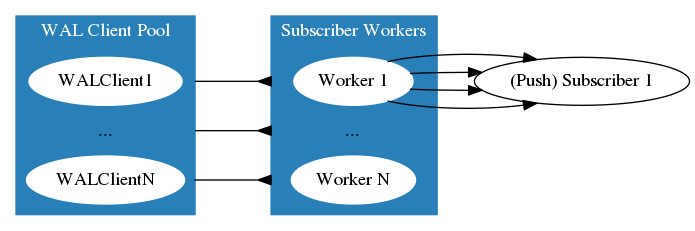

Publish to Subscribers

Outstanding messages will be pushed to Subscribers (or stored elsewhere, in the case of Pull-based subscriptions)—concurrently to as many as we can without overloading the WAL clients.

Each active Subscriber has their own personal “Worker”. This is just a more recognizable name for an Actor—a pseudo-process that deals solely with a given Subscriber. (Responses are automatically routed to the proper Worker by way of the Subscriber ID.)

The Worker’s primary goal is to shed outstanding messages as quickly as possible, whether that means forwarding them along to the Subscriber or moving them to non-ephemeral storage.

Note

By default, Courier will not wait for a response from “Message 1” before sending “Message 2”, and so on. For Pull subscriptions, it will attempt to persist outstanding messages asynchronously if supported by the storage system. Rate limits may be set for these operations at any time on a per-Subscriber basis.

Ordered delivery for both Push and Pull is supported, but off by default.
